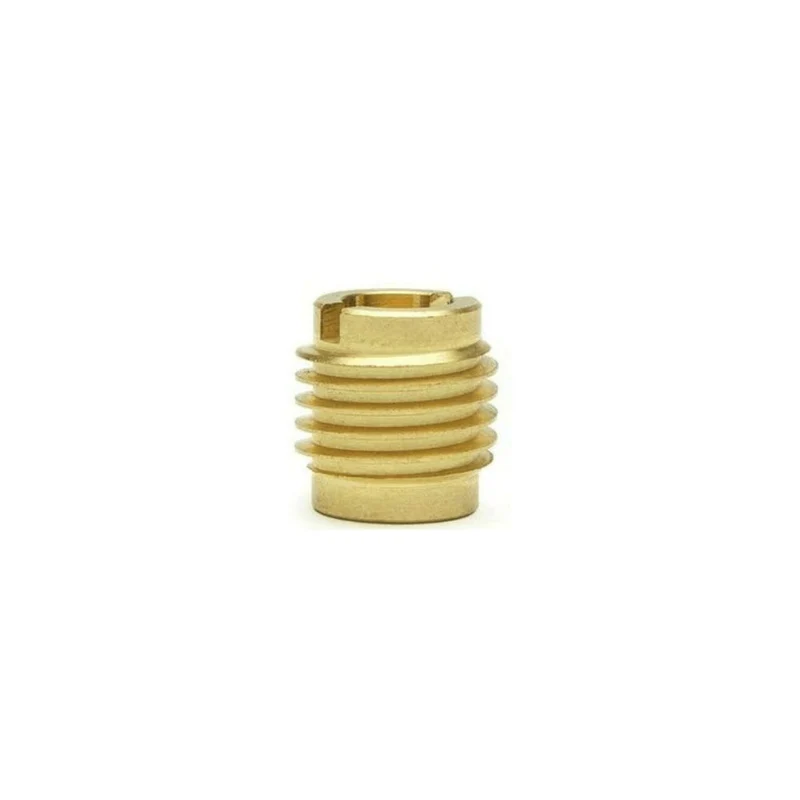

Brass Threaded Insert for Tap Handles – 3/8"-16

The Brass Threaded Insert for Tap Handles – 3/8"-16 is designed for making custom wooden tap handles. The insert screws directly into a suitable pre-drilled hole and provides the correct thread for mounting the finished handle onto compatible NukaTap and Intertap faucets.

A 1/2" (12.7 mm) hole is required for installation. The insert can then be screwed into the wood using a large flat-head screwdriver. It should be aligned straight and installed without excessive downward pressure so the external thread cuts cleanly into the wood.

Technical Data

• Material: Brass

• Internal thread: 3/8"-16

• Thread type: 3/8"-16 UNC

• Length: 0.625"

• Required hole diameter: 1/2" / 12.7 mm

• Suitable for: NukaTap and Intertap faucets

• Product code: KL13383

Questions & Answers

What is the threaded insert used for?
It is used to make custom wooden tap handles with a compatible thread for NukaTap and Intertap faucets.

What size hole is required?
A 1/2" or 12.7 mm diameter hole is required.

What does 3/8"-16 mean?
3/8" is the nominal thread diameter and 16 means 16 threads per inch.
