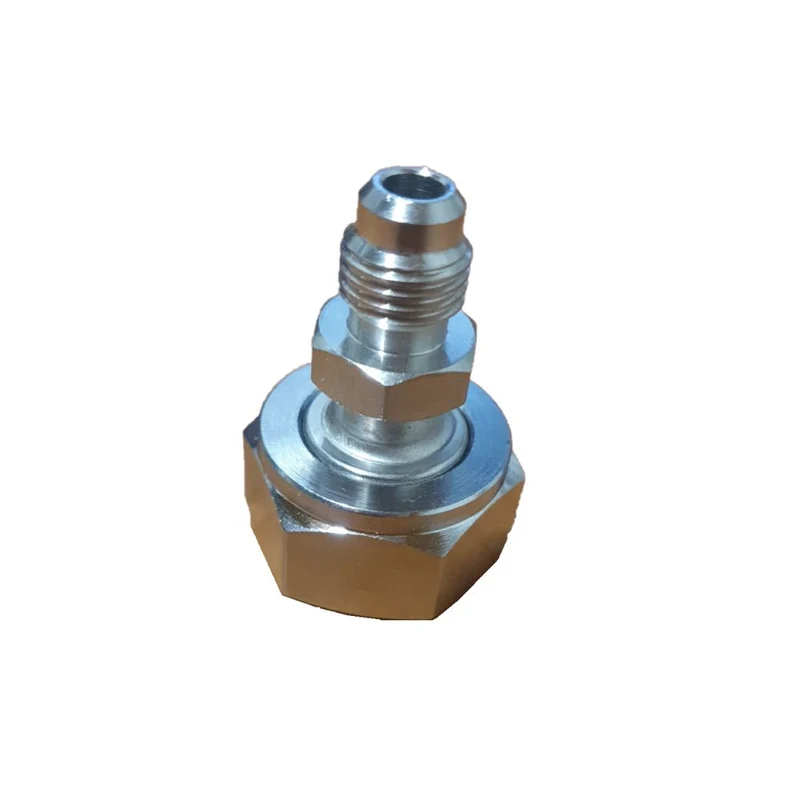

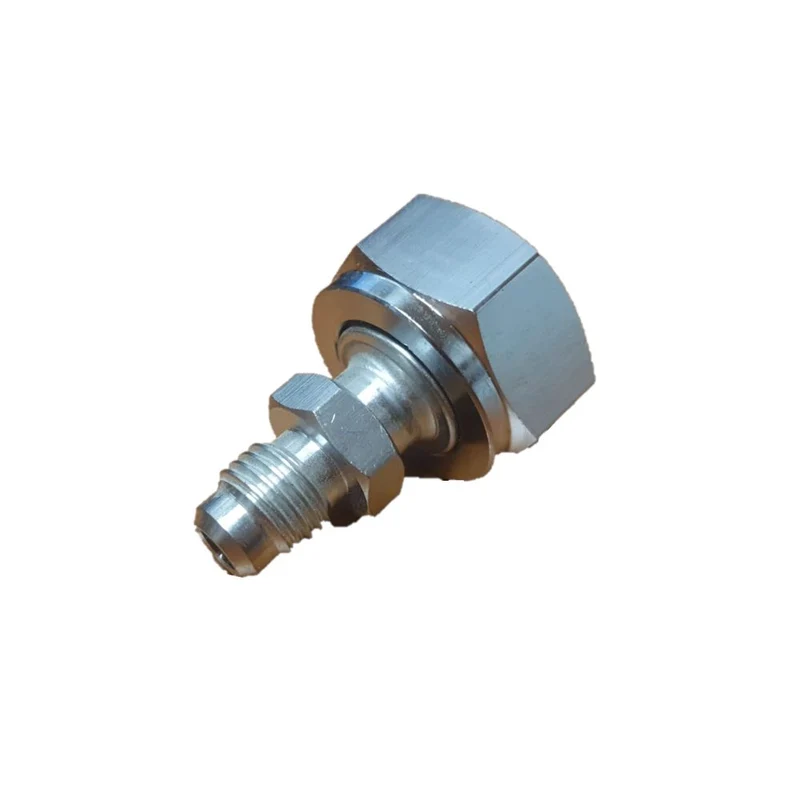

MFL Adapter (1/4") to 5/8" with Nut

The MFL Adapter (1/4") to 5/8" with Nut allows you to connect lines with a 1/4" MFL connection to keg couplers and other fittings with a 5/8" thread. In combination with a suitable Duotight fitting, beverage or gas lines can be connected and disconnected easily.

Supplied with the 5/8" nut, the adapter is suitable for keg couplers and other connections with a 5/8" thread. The removable MFL connection also makes it easier to change fittings without shortening the line or replacing the complete connection.

Technical Data

• Connection: (1/4") MFL

• Connection side: 5/8"

• Adapter material: Stainless steel

• Suitable for: Keg couplers and other connections with 5/8" thread

• Compatible with suitable Duotight fittings with 7/16" female thread

Included Components

• 1 × MFL Adapter 1/4" to 5/8"

• 1 × 5/8" plastic washer, black, 20 × 13 × 2 mm

• 1 × 5/8" hex nut, 14 mm bore

Questions & Answers

What is the MFL adapter used for?
It connects a 5/8" threaded fitting to a 1/4" MFL connection, allowing suitable line fittings to be attached.

Can I use Duotight fittings with this adapter?
Yes. Suitable Duotight fittings with a 7/16" female thread can be screwed onto the 1/4" MFL thread.

Which connections is the adapter suitable for?
It is suitable for keg couplers and other fittings with a 5/8" thread.
